Engraving Plant System

Details :

• C-KANARO history is significant to understand today's realities, values and targets.
• It is applied in one cycle of operation from top to bottom (immersion effect). CKB-69 guarantees uniform layer of emulsion on the screen because of its sturdy vibration-proof frame structure.
• The built in two motors help reduce downtime of coating subsequent screens to a minimum.
• Cones and emulsion reservoir are made of light weight aluminum alloy ensuring minimum wear to the working parts. Coating squeegee are made of water resistant top Quality rubber ensuring smooth and even emulsion layer on the screen
• Automatically height adjustment systems for reused screen.
• Spares for repeat changing components are available from C-KANARO 640 mm to 1018 mm Repeat.
• Complete Electrical Panel with PLC logic invertor.
• Single button operated system for all operation.
• Alarm system on finished coating.
• Top & Bottom head sliding on linear rail motion system (Made in Taiwan) for long life.
• Top & Bottom head traveling by Wire rope for smooth & maintenance free life.
• Variable Coating speed & Universal Reserve wire system for equal coating & coating thickness.
• Double squeegee system for fast & better coating for Inkjet & Laser Engraving.
• Very easy manual cone locking system with cone locking sensor.
• 220 V (Single Phase) Connection (Not r equired Three phase 440V, & Pneumatic line).

Needs every demand of an engraver. The most important features are exposure time, simple operation, constant light strength & incredible precision.

• Heavy fabricated structure for smooth working and long life.
• With standard make helozan UV bulb attachment.
• Geared drive for screen drive.
• This machine is without main shaft and tube less.
• Standard quality bearing rail for smooth and long life.
• Machine suitable for 640 to 1018 Rpt screen.
• Toothed belt drive for lamp moving.
• Suitable electric penal with standard part.

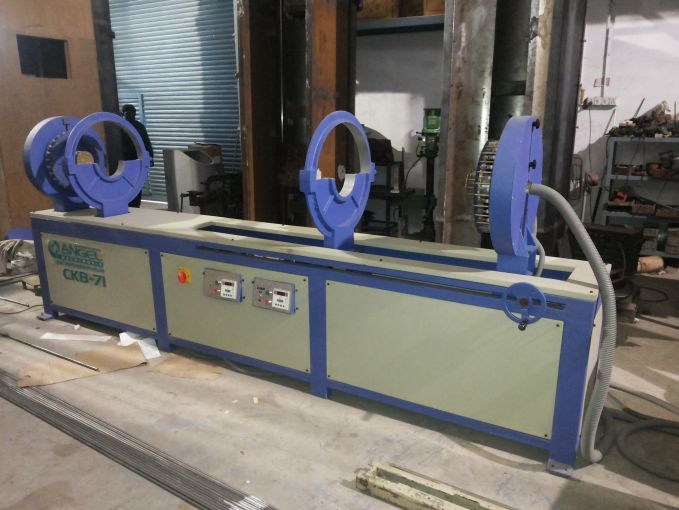

Details :

• Specially fabricated structure for smooth sliding drum.
• Special type heating system in both head for fast end ring fixing.
• Ring fixing head & screen support bracket sliding on linier motion rail system.
• Electric panel box with heater timer / temperature control system.
• Machine suitable for 640 Repeat to 1018 & 1410 to 3500mm long screen.
• 440 V Three Phase Connection.

C-KANARO Textile Machinery Pvt. Ltd. endring removing machine remove the end ring without use of any chemical edge of highly costly screen. The life of the endring also gets longer because no chemical comes in contact with the endring.

Specially and perfect designed removing blade for long life. A hot air blower performs a task that quickly remove the endring without damage from the screen.

• Very easy and fast to use.
• Specially designed blade.
• Storage type body structure.
• Extends the life of endring.
• Extends the life of screen.

Vertical Stripping Tank Stripping tanks suitable to strip Nickel perforated rotary screens in horizontal/vertical way is fabricated from best quality polymer materials to withstand strong stripping chemicals. The whole unit of the tank is based of FRP coated legs. Suitable lid cover is provided for easy opening and closing of the tank. Drain valve is also provided completely assembled. Standard stripping tanks are suitable to strip the screens up to 3.5 mtr Long and 640, 820, 914, 1018, 1450 and 1680 mm repeat also. They can be customised on special request.

Made from one piece molded plastic material completely provided with one piece rubber sheet cover. Drain cock and suitable M.S. Iron stand duly painted and ready for use.

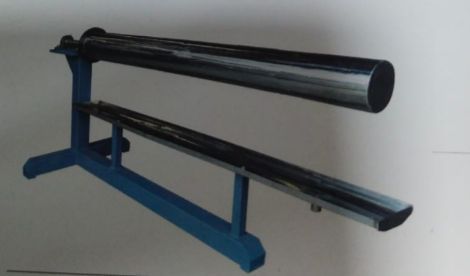

Screens have to be cleaned for oil stains due to grease and dirty handling. Stain removal process is a simple process using degreasing chemical left in the degreasing tank with the aid of supporting devices for proper handling.

Degreasing screens is a very important part of the screen preparation process. It is important to degrease your screens prior to applying emulsion or film because new screens or restretched screens need to be free of grease, oil and dirt to avoid problems with the stencil quality.

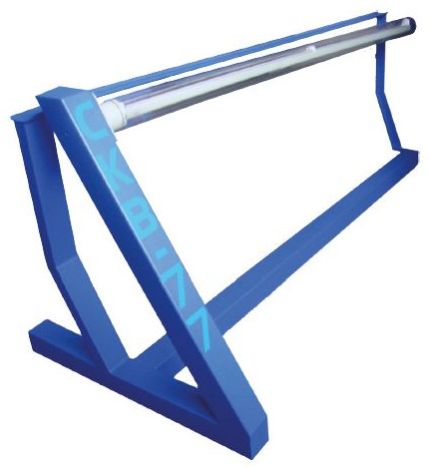

Retouching Stand: For Inspection and retouching of the engraved screen. Made from heavy pipe structure. Tube light housed in specially profiled M.S. pipe structure with clear transparent acrylic tube. Front wooden table with stand complete.

• Stand body fabricated by Ms square pipe structure for long life.
• Joint less acrylic tube for good performance.
• Easy operated system.

Procures screens from a cascaded screens roll without dents and defects caused otherwise due to manual removal. The semi circular trough is fabricated from Stainless steel sheets and is divided in to two section. For each section a Hinge is provided which can be set at different lever as per requirement. The screen un packing trough is mounted on a table. The pressure from the trough’s lever is just enough to remove screens with ease without damaging/denting.

• Stand body fabricated by SS 304 sheet & Ms structure for long life.
• Easy operated system.

C-KANARO make for up to 1680 repeat and 3500 mm long screen

Details :

• Heavy & Specially fabricated MS structure body.
• Electronic panel with temperature control system.
• 2 Hp standard blower for air circulation.
• Very easy door locking system.
• 6 kw heater for temperature control inside in box. (Up to 250 degree)
• 440 V (Three Phase) Connection.

Details :

• Heavy & Specially fabricated wooden body for long life.
• Electronic panel with temperature control system.
• 2 Hp standard blower fan for air circulation.
• Very easy door locking system.
• 2 kw heater & 1 ton capacity air conditioner for temperature control inside in box.
• 440 V (Three Phase) Connection.
